Module 100 cm

R110/100TPG/A

4.987 €

Features

  • Flue Made of AISI 304 stainless steel
  • Knobs Made of aluminum with IPX5 water protection
  • Working top Made of AISI 304 stainless steel with a thickness of 2 mm
  • Standard equipment 1 hook for lifting disk
  • Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)
  • Inner corners 90° spokes. Optional H2 spoking

Constructive Data

  • Net volume (m3) 0,957
  • Gross weight (kg) 147
  • Gross volume (m3) 2,074
  • Total gas power (kW) 12
  • Total gas power (Kcal/h) 10319
  • Whole-plate power gas (kW) 12
  • Gas connection 1/2"
  • Dimension (mm) 1000x1100x870
  • Packing dimensions (mm) 1280x1272x1274

R110/100TPG/P

5.881 €

Features

  • Flue Made of AISI 304 stainless steel
  • Knobs Made of aluminum with IPX5 water protection
  • Handles The brushed aluminum handles allow for a secure and sturdy grip with a ergonomic lines
  • Working top Made of AISI 304 stainless steel with a thickness of 2 mm
  • Standard equipment 1 hook for lifting disk
  • Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)
  • Inner corners 90° spokes. Optional H2 spoking

Constructive Data

  • Net volume (m3) 0,957
  • Gross weight (kg) 162
  • Gross volume (m3) 2,074
  • Total gas power (kW) 12
  • Total gas power (Kcal/h) 10319
  • Whole-plate power gas (kW) 12
  • Gas connection 1/2"
  • Dimension (mm) 1000x1100x870
  • Packing dimensions (mm) 1280x1272x1274

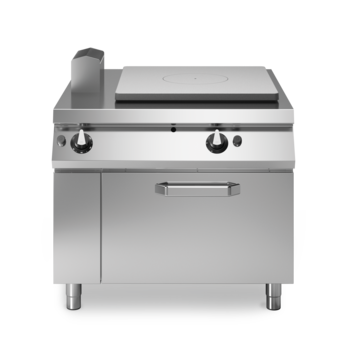

R110/100TPFG

7.096 €

Features

  • Flue Made of AISI 304 stainless steel
  • Knobs Made of aluminum with IPX5 water protection
  • Working top Made of AISI 304 stainless steel with a thickness of 2 mm
  • Standard equipment 1 hook for lifting disk; 2 x 530x430 mm oven grid
  • Kit Gas Natural gas conversion kit 30/50 m/bar (tested with natural gas G20)

Constructive Data

  • Net volume (m3) 0,957
  • Gross weight (kg) 223
  • Gross volume (m3) 2,074
  • Total gas power (kW) 22
  • Total gas power (Kcal/h) 18917
  • Whole-plate power gas (kW) 12
  • Gas connection 1/2"
  • Oven power (kW) 10
  • Oven type Static oven
  • Oven dimensions (mm) 540x1015x310
  • Oven temperature range (°C) 95-300
  • Dimension (mm) 1000x1100x870
  • Packing dimensions (mm) 1280x1272x1274
